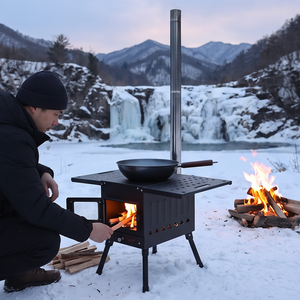

Black Large-sized Outdoor Stove Model A/B

This series of products is more suitable for outdoor use than tent stoves. They have secondary combustion air vents that can help the firewood burn more vigorously.

Overview of the Model B Large-sized Outdoor Stove

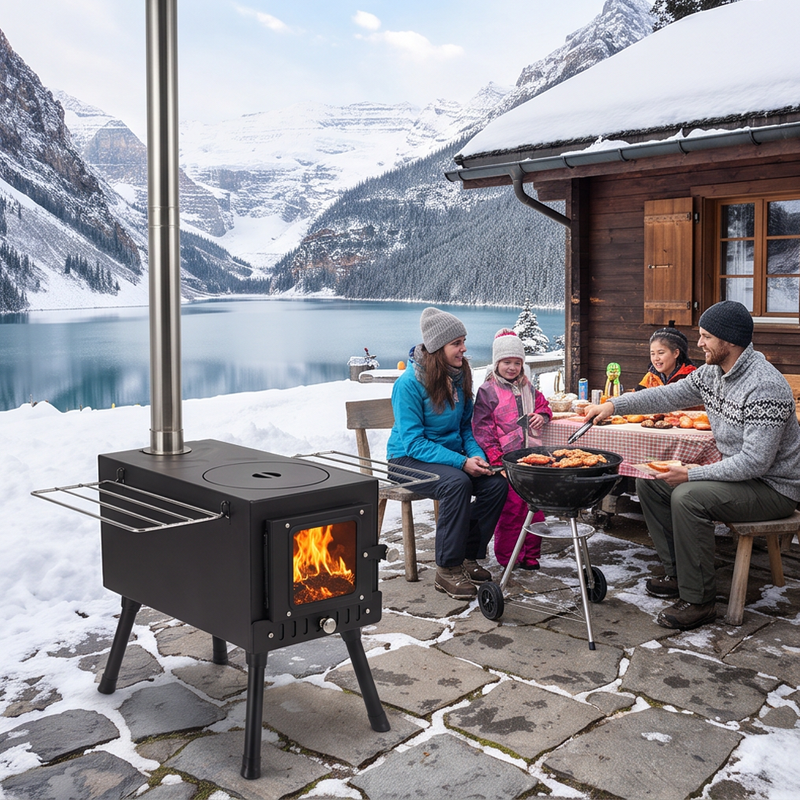

The Model B Large-sized Outdoor Stove is a freestanding wood-burning stove for outdoor cooking and heating at campsites, glamping grounds, fishing lodges, and rental fleets. Each unit has a 1.5 mm carbon steel body and is supplied with a five-section stainless steel chimney, two folding wire side shelves, a glass-panel loading door, and four detachable legs. The larger firebox accepts longer wood pieces than compact tent stoves, and flame-shaped secondary-air vents admit air above the fuel bed. It is manufactured by Yongkang Luling Industry and Trade Co., Ltd. in Yongkang, Zhejiang, which reports a 5,000 m² facility with laser cutting, CNC bending, and CNC punching equipment and in-house inspection instruments.

Construction and Features of the Model B Large-sized Outdoor Stove

Carbon steel firebox and cooking top

The firebox and outer casing are made of carbon steel with a 1.5 mm plate and a matte black finish. The top plate has a removable circular cover for direct-flame cooking, and a control knob below the door adjusts air intake and burn rate. A fixed grate supports the firewood, with ash collection below the firebox.

Secondary-air vents

Flame-shaped vents along the upper firebox introduce secondary air into the combustion zone, supporting secondary combustion of flue gases under dry-fuel conditions. The door damper and air-control knob adjust the draw.

Folding shelves and leg options

Two stainless steel wire shelves fold out from the sides for cookware and utensils and fold flat for packing; they also serve as carry handles when the stove is cool. It ships with four legs; extended legs (340–550 mm, per the factory table) are optional for a higher working height.

Viewing glass and chimney

The loading door carries a glass panel; optional glass sizes are 100×50×5 mm / 110×110×5 mm and 270×100×4 mm. The chimney comprises five stainless steel sections of 320×60 mm each, including two perforated mesh sections that reduce contact temperature on the upper flue.

Suitable Applications for the Model B Large-sized Outdoor Stove

The stove is suited to outdoor cooking and heating for campsites, glamping operators, fishing lodges, mobile catering, and equipment rental fleets. It burns dry firewood and is for outdoor use only; tent use requires a proper chimney penetration, clearance from combustibles, and continuous ventilation. Do not use it in sealed indoor spaces; wear the supplied gloves for hot parts and let the stove cool before packing.

Ordering and Support for the Model B Large-sized Outdoor Stove

The manufacturer accepts sample orders, mixed-model orders, and OEM/ODM requests with custom packaging and labeling. Packed size is 485×290×305 mm at 10.7 kg gross weight, supporting container-load planning for distributors and enterprise customers. Contact the factory for current MOQ, lead time, freight, inspection reports, and glass options; certificates and packaging photos are available before shipment.

MATERIAL	SIZE			WEIGHT / kg		ACCESSORIES	SMOKE PIPE SIZE	REMARKS
	UNFOLD	FOLD	PACK	N.W	G.W
carbon steel	430*540*375mm 16.93*21.26*14.76in	430*220*245mm 16.93*8.66*9.65in	485*290*305mm 19.09*11.42*12.01in	9.7	10.7	Some smoke pipes,a hook,a pair of gloves,A screwdriver	320mm*60mm*5 12.6in*2.36in*5	like the 2822 small size stove,it can be equipped with extended legs. (340mm→550mm) glasses size： ①100*50*5mm/110*110*5mm 3.94*1.97*0.2in/4.33*4.33*0.2in （optional） ②270*100*4mm 10.63*3.94*0.16in steel plate thickness：1.5mm

FAQ About the Model B Large-sized Outdoor Stove

What material is used for the Model B Large-sized Outdoor Stove?

The body and firebox are carbon steel with a 1.5 mm plate and matte black finish; the chimney sections and side shelves are stainless steel.

What are the unfolded, folded, and packed dimensions?

Unfolded: 430×540×375 mm; folded: 430×220×245 mm; packed: 485×290×305 mm. Net weight is 9.7 kg and gross weight 10.7 kg.

What is included with each Model B Large-sized Outdoor Stove?

Each stove includes five chimney sections (320×60 mm each), one L-shaped hook tool, one pair of gloves, and one screwdriver.

Can the Model B Large-sized Outdoor Stove use extended legs?

Yes. Extended legs are a factory option, listed at 340–550 mm in the specification table; the dimension drawing shows 36–56 cm, so confirm the selected option when ordering.

Which viewing-glass options are available?

The standard door glass is fitted at the factory. Optional sizes are 100×50×5 mm or 110×110×5 mm, and a 270×100×4 mm large side window.

How tall is the chimney on the Model B Large-sized Outdoor Stove?

The drawing marks the assembled chimney height at 122 cm, built from five 320 mm sections, two of them perforated mesh.
